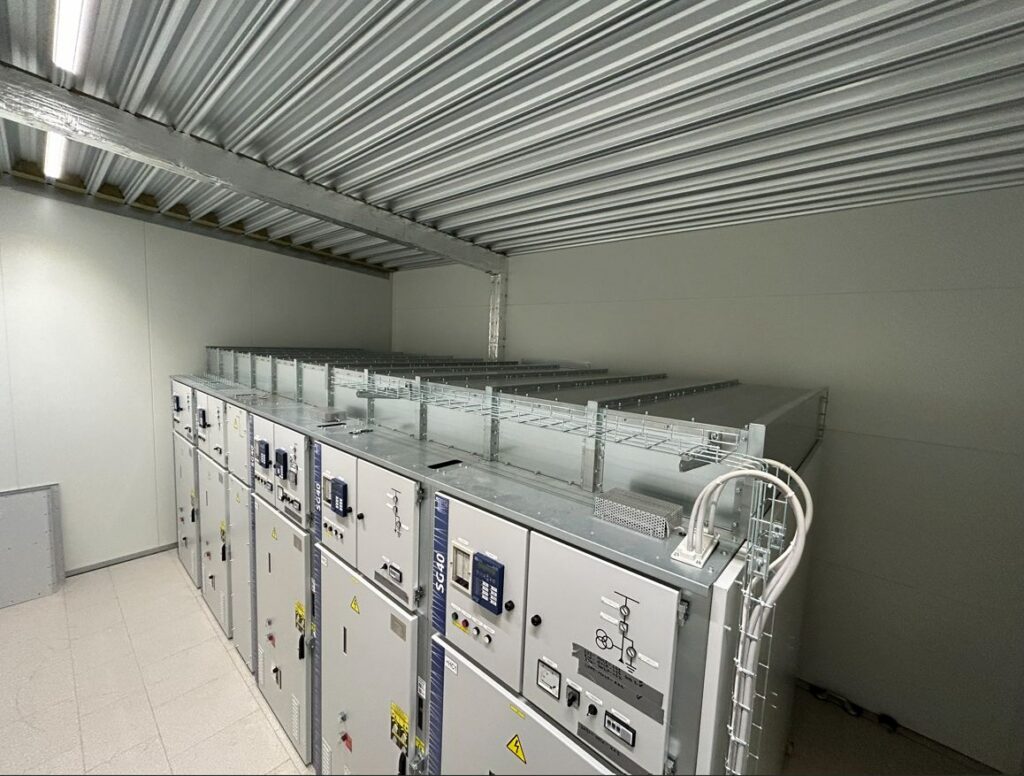

Withdrawable MILE 36kV Switchgear

The SG_40 is an extension of the 11kV-24kV MILE product line into a new voltage class of up to 36 kV (LSC2B-PM, AFLR 31,5 kA/1s, 3150A). The new product inherits the field-proven design and commitment to develop SF6-free switchgear solutions. The design is 100% air insulated.

The SG40 has a typified design so that the arrangement of equipment and instruments in the panel represents the mainstream concept of switchgear specified by most customers worldwide. Additionally, the floor truck design allows easy removal and maintenance of the vacuum circuit breaker.

The range offers Incomers, Feeders, Bus Couplers and Metering panels, with typical feeder/incomer dimensions shown below;

Ratings:
31.5kA, 3150A up to 36kV
